Solar GPS/Argos Avian Transmitters (TGAVS)

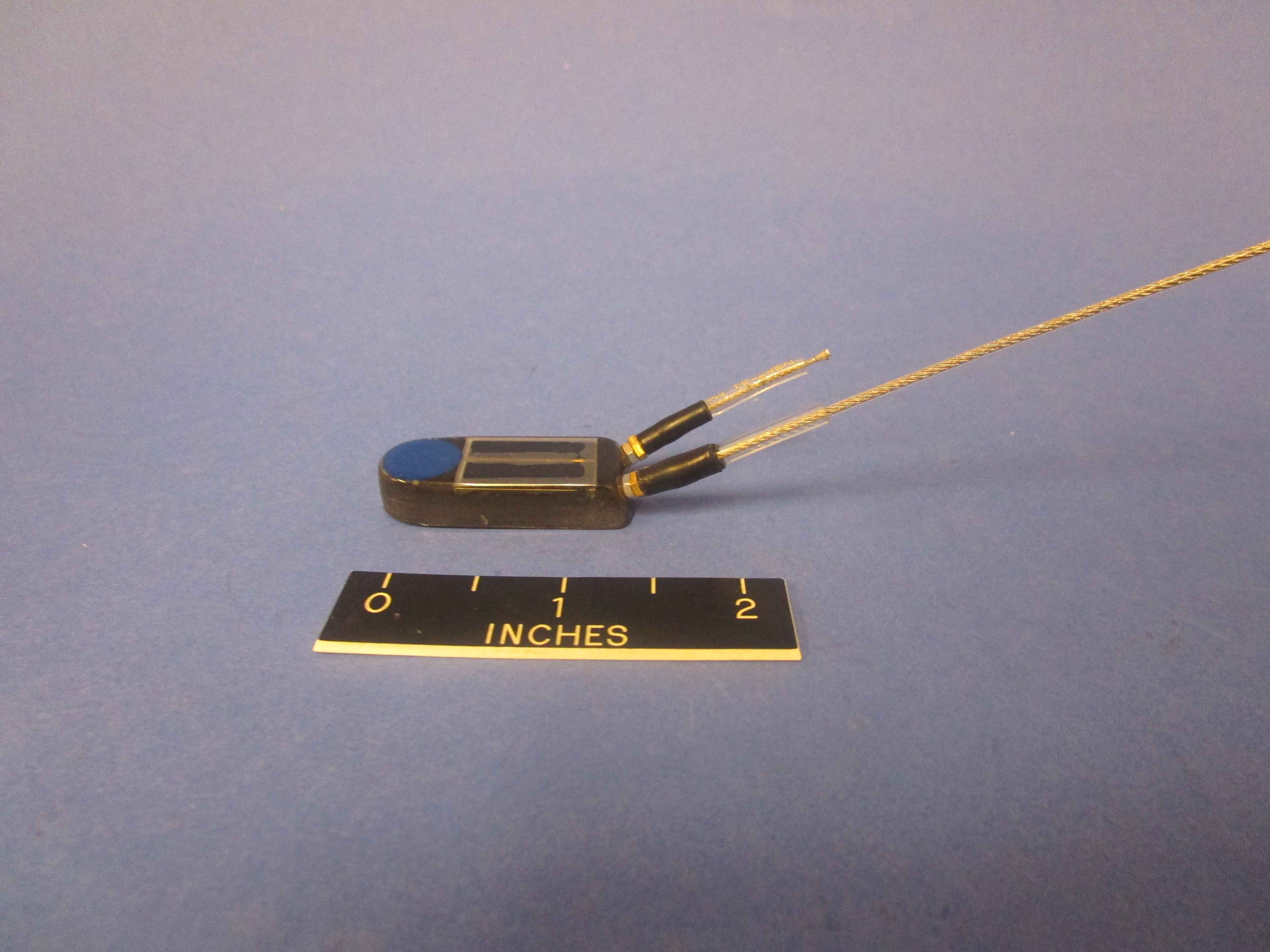

TGAVS-811-5
TGAVS-811-5

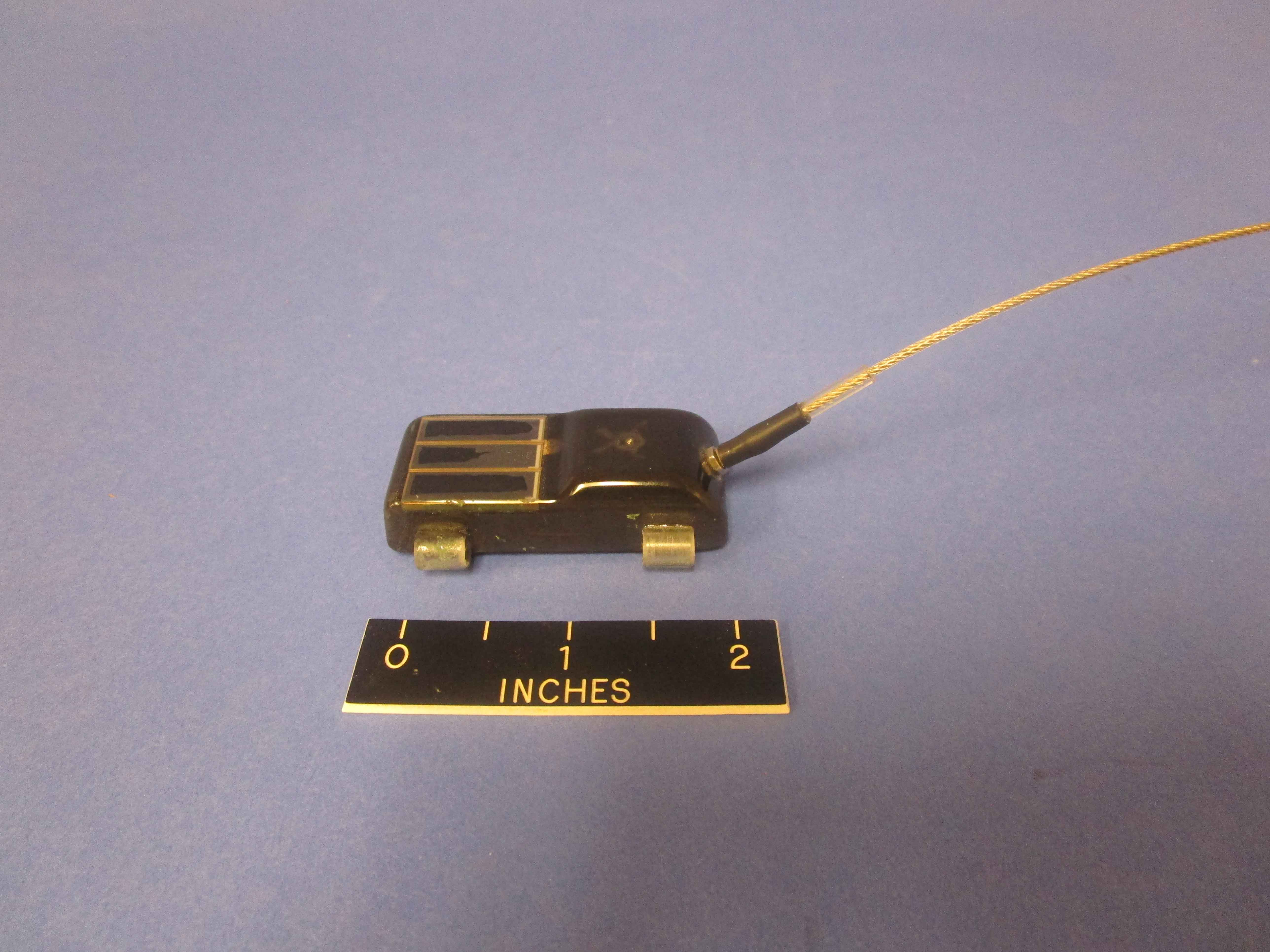

TGAVS-830-5
TGAVS-830-5

Models

Model Dimensions
L x W x H (in, cm)		 Weight (g)
TGAVS-811-5 1.6 x 0.7 x 0.35
4.1 x 1.7 x 0.9		 11
TGAVS-830-5 2.2 x 1.0 x 0.6
5.6 x 2.5 x 1.5		 30

Dimensions are exclusive of antenna or additional attachment options. Weights include a lightweight antenna, but other antenna options and attachment options may add weight.

Key Features

  • TGAVS models collect GPS positions and transfer data through the Argos satellite system. This satellite-based system provides global coverage and particularly good performance in the polar regions.
  • Solar powered transmitters provide a longer operational life than units powered by lithium primary batteries.
  • In addition to the GPS and Argos features of these units, they also have an optional VHF transmitter. The VHF transmitters can be used to locate or monitor the eartags from the ground or aircraft.
  • On-board satellite overpass predictions allow efficient data transfer, with units able to be programmed to transmit only to specific satellites and only when the satellites are predicted to be in view.
  • Mortality, activity, temperature, and low-voltage sensors are available. Data can be collected according to user-defined parameters and schedules and transmitted through Argos.
  • A real-time clock/calendar controls all timing functions.
  • Units can be programmed using Telonics Product Programmer (TPP). TPP makes it possible for users to program their own systems and simulate performance of the system prior to deployment.
    • On-board sensors can be activated or deactivated. Data collection regimes and schedules can be altered. Sensor data can be added or deleted from Argos transmissions.
    • Argos ID codes, transmission frequencies, transmission power levels, and transmission schedules can all be modified.
  • Data retrieved through Argos are processed using the Telonics Data Converter (TDC). TDC provides complete data decoding of Argos DS files, including location and sensor data, and provides for plotting of locations in Google Earth.

Related Products

TDC Telonics Data Converter

TDC Telonics Data Converter

Telonics Data Converter (TDC) is used to convert raw data from Telonics transmitters into data reports and to display locations on Google Earth and Google Maps. You can review TDC reports in Microsoft Excel or other spreadsheet programs.

TPP Telonics Product Programmer

TPP Telonics Product Programmer

Telonics Product Programmer (TPP) is a powerful software tool used to program Telonics transmitters, and Telonics CR-5 and CR-7 collar release mechanisms. TPP gives you the ability to modify aspects of your Telonics GEN4 GPS and VHF transmitters including data collection and transmission intervals. TPP is designed for ease of use, with simple point-and-click navigation through the program.

TSC-9A Smart Cable

TSC-9A Smart Cable

The TSC-9A is a multi-use interface cable terminated with a USB A connector and a male BNC (bayonet style) connector. The cable is used to connect various Telonics products to a computer when using Telonics Product Programmer (TPP), Telonics Data Converter (TDC), or the CR-2a BCP-2 programming software. The BNC connector allows quick and easy attachment of various adapters.

CN008351-001 Adapter

CN008351-001 Adapter

Adapter, female BNC to alligator clips for use with the TSC-9A cable. This adapter is used for systems where programming/download connections are made using the antenna tip or saltwater switch buttons.

TSTR-4 Test Receiver

TSTR-4 Test Receiver

The TSTR-4 provides transmit indication for Argos PTTs (401.650 MHz). Provides both a visual indicator and audio tone with each transmission. Operates on a standard 9 volt battery. Designed specifically for short range (2-3 feet) testing of Argos transmitters.
