RA-23K VHF Antenna

RA-23K
Name/
Description
Standard Frequency Bands* Number of
Elements
Antenna Gain Connections on Antenna Handheld Fixed Site Land
Vehicles
Boats &
Ships
Aircraft
flexible "H" type 142-146 MHz
148-154 MHz
158-162 MHz
162-166 MHz
164-168 MHz
168-174 MHz
2 4 dBd BNC female
RW-2, 5ft. cable included

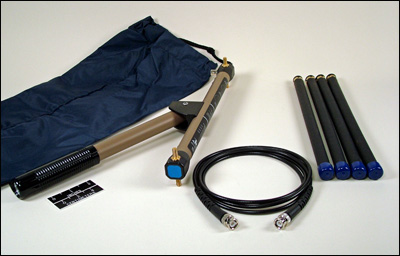

The RA-23K is a rugged, heavy duty handheld directional "H" antenna. The aluminum handle folds against the center section and the flexible elements are detachable for storage in a slim carrying pouch. Great for handheld use in applications where other antennas might easily be damaged. RA-23K includes RA-23 antenna with elements, RW-2 coaxial cable (5ft.), and the PK 003080-001 carrying pouch.

Specifications

Frequency Ranges142-146 MHz, 148-154 MHz, 158-162 MHz, 162-166 MHz, 164-168 MHz, 168-174 MHz
Gain4 dBd
Front to back ratio12 dB typical
ConnectorBNC female
Number of elements2
Reception Radiation PatternRA-23 reception radiation pattern

Photo Gallery

Accessories/Replacement Parts

RA-23E, replacement director/reflector element

PK 003080-001, carrying pouch
PK-003080-001, carrying pouch

RW-2 Coaxial Cable
RW-2, coaxial cable, 5ft

For other coaxial cable lengths, please visit our cables page.
