RA-22 VHF Antenna

RA-22 VHF Antenna

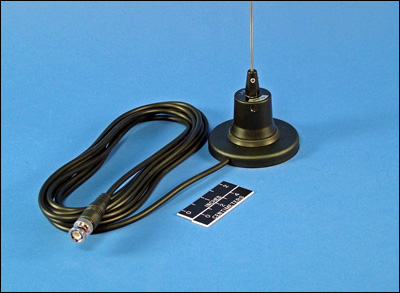

RA-22 antenna with 12 ft. cable
Name/
Description
Standard Frequency Bands* Antenna
Length
Antenna Gain Connections on Antenna Handheld Fixed Site Land
Vehicles
Boats &
Ships
Aircraft
5/8 wave whip with magnetic mount 216-220 MHz
220-225 MHz
46.75 in 3 dBd Integral 12 ft.
cable with
BNC male connector


The RA-22 is an omnidirectional, base loaded whip antenna. This antenna is an excellent choice for searching for a signal from a vehicle. The RA-22 has a magnetic mount that allows the antenna be affixed to a vehicle roof or other metal surfaces. The metal surface also serves as ground plane for the antenna and is required for effective operation and to maintain the omnidirectional pattern. The RA-22 is not suitable for use on vehicles with aluminum or fiberglass roofs, or other nonconductive surfaces.

Specifications

Frequency Ranges216-220 MHz
220-225 MHz
Gain3 dBd
Ground plane requirementRequired, not provided
ConnectorBNC male
Antenna length46.75 in
Cable includedYes, 12ft.

Accessories/Replacement Parts

CM-000504-002, replacement magnetic base

Replacement whip and/or base loading assembly
Replacement whip and/or base loading assembly
The metal whip portion of this antenna (RA-5W) and/or the base loading assembly (CM00503-001 for RA-5A or RA-5B, and CM00503-002 for RA-22) can be ordered separately as replacement parts.

For other coaxial cable lengths, please visit our cables page.
