ST-20-200A Argos Electronics

The information below on discontinued products is provided for individuals who are still using these older systems. Product descriptions may be time sensitive or even outdated. Please contact Telonics if you have questions.
ST-20-200A
Size L x W x H (in, mm) Weight (g) Low Power (mW) High Power (mW)
3.67 x 1.90 x 1.019
93.2 x 48.3 x 25.9
64 500 (Typ) mW 1000 (Typ) mW

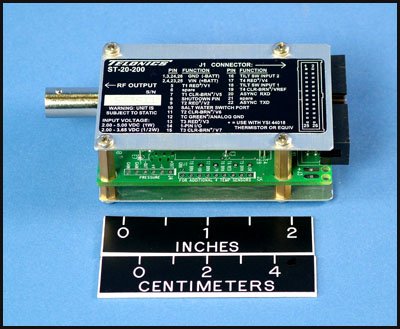

Telonics designed the ST-20-200A with environmental research applications in mind, especially those in the fields of oceanography and meteorology. The ST-20-200A is an excellent choice for researchers who have a custom data collection system needing satellite uplink capability. The ST-20-200A acts as a "radio modem" that allows researchers to transfer data from a data collection system (host) to the Argos Data Collection and Location System on NOAA polar orbiting satellites.

The ST-20-200 is a fully certified Argos Platform Transmitter Terminal or PTT. The researcher can control the data content and timing of each transmission through his/her data collection system. However, the ST-20-200A is responsible for packing data into the Argos message and modulating the radio signal, and therefore the researcher is not burdened with the Argos certification process. The ST-20-200A also provides more data throughput than is possible with a single Argos ID code since it supports up to 8 unique ID codes on separate frequencies, yielding the flexibility of 8 separate Argos transmitters (relevant Argos service fees apply).

Key Features

  • Provides uplink capability for up to 8 unique ID codes, frequencies, and repetition periods
  • Supports up to 7 independent Argos data buffers that the host can populate in real-time
  • Transmits variable-length Argos messages with either 20 or 28-bit ID codes
  • Serial interfaces supports TTL or RS-232 levels and baud rates from 300 to 9600
  • Argos certification allows researchers to forego the rigorous certification process
  • Shutdown mode allows users to override operation using a magnetic switch
  • Autorepeat feature allows the ST-20-200 to repeat data without host intervention
  • Failsafe feature alerts users upon communication link or host failure

Specifications

Mechanical

Size3.67 x 1.90 x 1.019
93.2 x 48.3 x 25.9
Weight64 grams

Electrical

Supply voltage, minimum2.0 V
Supply voltage, maximum, low power3.65 V
Supply voltage, maximum, high power5.0 V
Output Impedence50 Ω
Low power level500 (Typ) mW
27 ±2 dbm
High power level1000 (Typ) mW
30 ±2 dbm
Minimum operating temperature70° C
Maximum operating temperature-40° C
Argos transmission frequency401.618 to 401.680 MHz
Modulation (BPSK)-1.1 to +1.1 ±0.1 Radians
Quiescent current, typical25 µA
Spurious emissions-45 dBc
