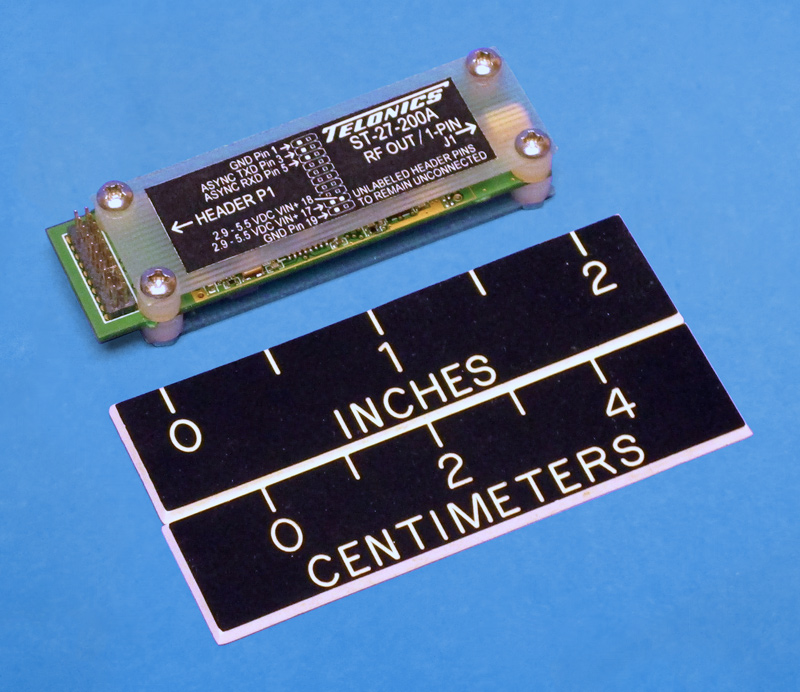

Fig 1. ST-21-200A/ST-21-200L shown with option 710 (IDC ribbon cable interface to host)
|

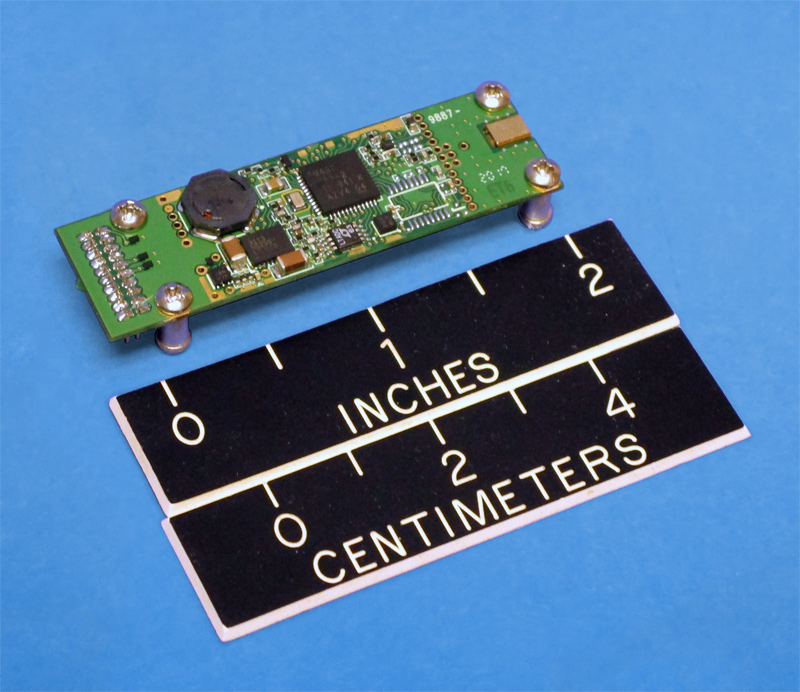

Fig 2. ST-21-200A/ST-21-200L shown with option 730 (direct mounting interface to the
host's printed wiring board)
|
Telonics has developed two Argos electronic modules designed for integration into customer
provided systems. Meteorologists and oceanographers often develop highly specialized oceanographic
buoys, meteorological balloons, and associated data collection instrumentation. By selecting and
using these Argos certified packages, the user avoids the Argos certification process. The
Telonics module handles all Argos systems timing issues, and transmission messaging parameters.
This allows the user to concentrate efforts on other aspects of the experiment. This methodology
is especially useful for users who will be deploying on a small to medium numbers of systems and
for time critical applications.
Key Features - ST-21-200A and ST-21H-200A
- Provides uplink capability for any combination of ID codes, RF frequencies, and repetition
periods, all under host control
- Supports up to 7 independent Argos data buffers that the host can populate in real-time
- Transmits variable-length Argos messages with either 20 or 28-bit ID codes
- Serial interfaces supports TTL levels and baud rates from 300 to 9600
- Argos certification allows researchers to forgo the rigorous certification process
- Auto repeat feature allows the ST-21-200A to repeat data without host intervention
- Failsafe feature alerts users upon communication link or host failure
Key Features - ST-21-200L and ST-21H-200L
- Transmits the minimum Argos message as required by the Argos Specifications.
- Can support either 20 or 28-bit Argos ID codes.
- Argos certification allows researchers to forego the rigorous certification process
- Shutdown mode through use of an external switch (user provided)
- Flexible transmitter duty cycling programmable with TPP (sold separately). TPP configures
the duty cycles and is also required for setting the transmitter's clock after the power supply
has been disconnected.
Models
| Model |
Size (in, mm) |
Weight (g) |
Low Power (mW) |
High Power (mW) |
Capabilities |
| ST-21-200A |
2.23 x .68 x .43 in.
5.65 x 1.75 x 1.08 cm |
5-7 |
500 (Typ) mW |
630 (Typ) mW |
Location and Data Transfer Capability |
| ST-21H-200A |
2.23 x .68 x .43 in.
5.65 x 1.75 x 1.08 cm |
5-7 |
500 (Typ) mW |
800 (Typ) mW |
Location and Data Transfer Capability |
| ST-21-200L |
2.23 x .68 x .43 in.
5.65 x 1.75 x 1.08 cm |
5-7 |
500 (Typ) mW |
630 (Typ) mW |
Location Only, No Data Transfer Capability |
| ST-21H-200L |
2.23 x .68 x .43 in.
5.65 x 1.75 x 1.08 cm |
5-7 |
500 (Typ) mW |
800 (Typ) mW |
Location Only, No Data Transfer Capability |
Specifications
ST-21-200A and ST-21-200L Specifications
Show
Mechanical
Option 710 (IDC cable interface)
| Size | 2.23 x .68 x .43 in.
5.65 x 1.75 x 1.08 cm |
| Weight | 7 grams |
Option 730 (PWB mount)
| Size | 2.2 x .65 x .35 in.
5.59 x 1.65 x .88 cm |
| Weight | 5 grams |
ST-21-200A/L Electrical
| Supply voltage, minimum | 2.85 V |
| Supply voltage, maximum, low power | 4.30 V |
| Supply voltage, maximum, high power | 4.30 V |
| Output Impedence | 50 Ω |
| Low power level | 500 (Typ) mW
27 ±2 dbm |
| High power level | 630 (Typ) mW
28 ±2 dbm |
| Transmit Current | 475mA max (low power)
600mA max (high power) |
| Minimum operating temperature | -30° C |
| Maximum operating temperature | 70° C |
| Argos transmission frequency | 401.630 to 401.680 MHz (Argos)
401.618 to 401.622 MHz (Brazil SCD) |
| Modulation (BPSK) | -1.1 to +1.1 ±0.1 Radians |
| Quiescent current, typical | 5 µA |
| Spurious emissions | -40 dBc |
ST-21H-200A and ST-21H-200L Specifications
Show
Mechanical
Option 710 (IDC cable interface)
| Size | 2.23 x .68 x .43 in.
5.65 x 1.75 x 1.08 cm |
| Weight | 7 grams |
Option 730 (PWB mount)
| Size | 2.2 x .65 x .35 in.
5.59 x 1.65 x .88 cm |
| Weight | 5 grams |
ST-21H-200A/L Electrical
| Supply voltage, minimum | 2.85 V |
| Supply voltage, maximum, low power | 4.30 V |
| Supply voltage, maximum, high power | 4.30 V |
| Output Impedence | 50 Ω |
| Low power level | 500 (Typ) mW
27 ±2 dbm |
| High power level | 800 (Typ) mW
29 ±2 dbm |
| Transmit Current | 570mA max (low power)
750mA max (high power) |
| Minimum operating temperature | -30° C |
| Maximum operating temperature | 70° C |
| Argos transmission frequency | 401.630 to 401.680 MHz (Argos)
401.618 to 401.622 MHz (Brazil SCD) |
| Modulation (BPSK) | -1.1 to +1.1 ±0.1 Radians |
| Quiescent current, typical | 5 µA |
| Spurious emissions | -40 dBc |
